Auto Cropping- Based on labeling the connected components


                                                     This post is about labeling the connected components in a binary image and crop the connected components based on the label. The main two functions used for this simple operation are ‘bwlabel’ and ‘regionprops’.
                                                     I used ‘bwlabel’ to label the connected components.  After labeling, I used ‘regionprops’ function to find the rectangle containing the region.  To find the rectangle points, I used ‘BoundingBox’ property.
                                                    Then the labeled components are automatically cropped and the image is displayed. To crop an image, ‘imcrop’ function is used.

MATLAB CODE:


A=imread('coins.png');
figure,imshow(A); title('Original Image');








%Convert the Image to binary
B=im2bw(A);

%Fill the holes
C=imfill(B,'holes');

%Label the connected components
[Label,Total]=bwlabel(C,8);
figure,imshow(C); title('Labelled Image');










%Rectangle containing the region
Sdata=regionprops(Label,'BoundingBox');

%Crop all the Coins
for i=1:Total
    Img=imcrop(A,Sdata(i).BoundingBox);
    Name=strcat('Object Number:',num2str(i));
    figure,imshow(Img); title(Name);
end








Another Example:


'coins.png'

Labeled Image




like button Like "IMAGE PROCESSING" page

Identifying the objects based on count(bwlabel)

Identifying the objects based on labeling



Steps To Be Performed:


  1. Convert the RGB image to binary image.
  2. Fill the holes in the image.
  3. Label the objects in the image based on connectivity 8
  4. Display the images in a RGB format
4.1.  Store the co-ordinates(x,y) of the object 1 which is  labeled as 1.
4.2.  Calculate the image size for object one. The length can be found by subtracting the maximum and the minimum of y values. Similary for x find the width by subtracting the maximum and minimum of x values.
4.3.  Now map the pixel value to the new image.






Original Image






A=imread('num2.jpg');
figure,imshow(A);
title('Original image');
C=~im2bw(A);
B=imfill(C,'holes');
label=bwlabel(B,8);
for j=1:max(max(label))

[row, col] = find(label==j);

len=max(row)-min(row)+2;
breadth=max(col)-min(col)+2;
target=uint8(zeros([len breadth 3] ));
sy=min(col)-1;
sx=min(row)-1;

for i=1:size(row,1)
    x=row(i,1)-sx;
    y=col(i,1)-sy;
    target(x,y,:)=A(row(i,1),col(i,1),:);
end
mytitle=strcat('Object Number:',num2str(j));
figure,imshow(target);title(mytitle);
end





The objects that are displayed in a RGB format.













like button Like "IMAGE PROCESSING" page

Identifying Objects based on color (RGB)

              Here I  used a bitmap image with different shapes filled with primary colors Red, Blue and Green.


              The objects in the image are separated based on the colors. The image is a RGB image which is a 3 dimensional matrix.

Lets use (i,j) for getting the pixel position of the image A.
In the image, A (i, j, 1) represents the value of red color.
 A (i, j, 2) represents the green color.
A (i, j, 3) represents the blue color.

To separate the objects of color red:
Check if A (i, j, 1) is positive. [In most cases the value will be 255];
 A (i, j, 2) and A (i, j, 3) will be zero.

Similarly, other colors can be separated.



MATLAB CODE:

A=imread('shapes.bmp');
figure,imshow(A);
title('Original image');



%Preallocate the matrix with the size of A
Red=zeros(size(A));
Blue=zeros(size(A));
Green=zeros(size(A));



for i=1:size(A,1)
    for j=1:size(A,2)

        %The Objects with Red color
        if(A(i,j,1) < = 0)
          Red(i,j,1)=A(i,j,1);
          Red(i,j,2)=A(i,j,2);
          Red(i,j,3)=A(i,j,3);
        end

        %The Objects with Green color
        if(A(i,j,2) < = 0)
          Green(i,j,1)=A(i,j,1);
          Green(i,j,2)=A(i,j,2);
          Green(i,j,3)=A(i,j,3);
        end

        %The Objects with Blue color
        if(A(i,j,3) < = 0)
          Blue(i,j,1)=A(i,j,1);
          Blue(i,j,2)=A(i,j,2);
          Blue(i,j,3)=A(i,j,3);
        end

    end
end

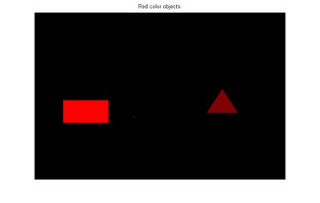

Red=uint8(Red);
figure,imshow(Red);
title('Red color objects');



Blue=uint8(Blue);
figure,imshow(Blue);
title('Blue color objects');



Green=uint8(Green);
figure,imshow(Green);
title('Green color objects');
